Fish and Chips: Functional Geometry and FPGA Circuit Layout

I love Escher’s fish, and I especially love Peter Henderson’s rendering of Escher’s fish, which has inspired much of the work I have done on algebraic specification of circuit layout, building on the original work on Ruby for circuit design and layout by Mary Sheeran and Geraint Jones.

Here we have Escher’s Square Limit, drawn in Lean 4 using the algebra of pictures from the 2002 update of Peter Henderson’s 1982 paper Functional Geometry.

Square Limit to depth 2

And this is its beautiful description in Lean 4:

def squarelimit (n : Nat) :=
  nonet (corner n) (side n) (rot (rot (rot (corner n))))
        (rot (side n)) u (rot (rot (rot (side n))))
        (rot (corner n)) (rot (rot (side n))) (rot (rot (corner n)))

Functional Geometry for Circuit Layout

Ruby, a relational hardware description language which provides combinators that simultaneously combine behavioural semantics and layout semantics, allows for the expression of sophisticated circuit layouts using just composable combinators without mentioning a single Cartesian co-ordinate. The page A Sorter Example in Lava gives an example of how a high speed sorter can be efficiently laid out on a Xilinx FPGA using a DSL that has layout combinators that also compose behaviour (Lava).

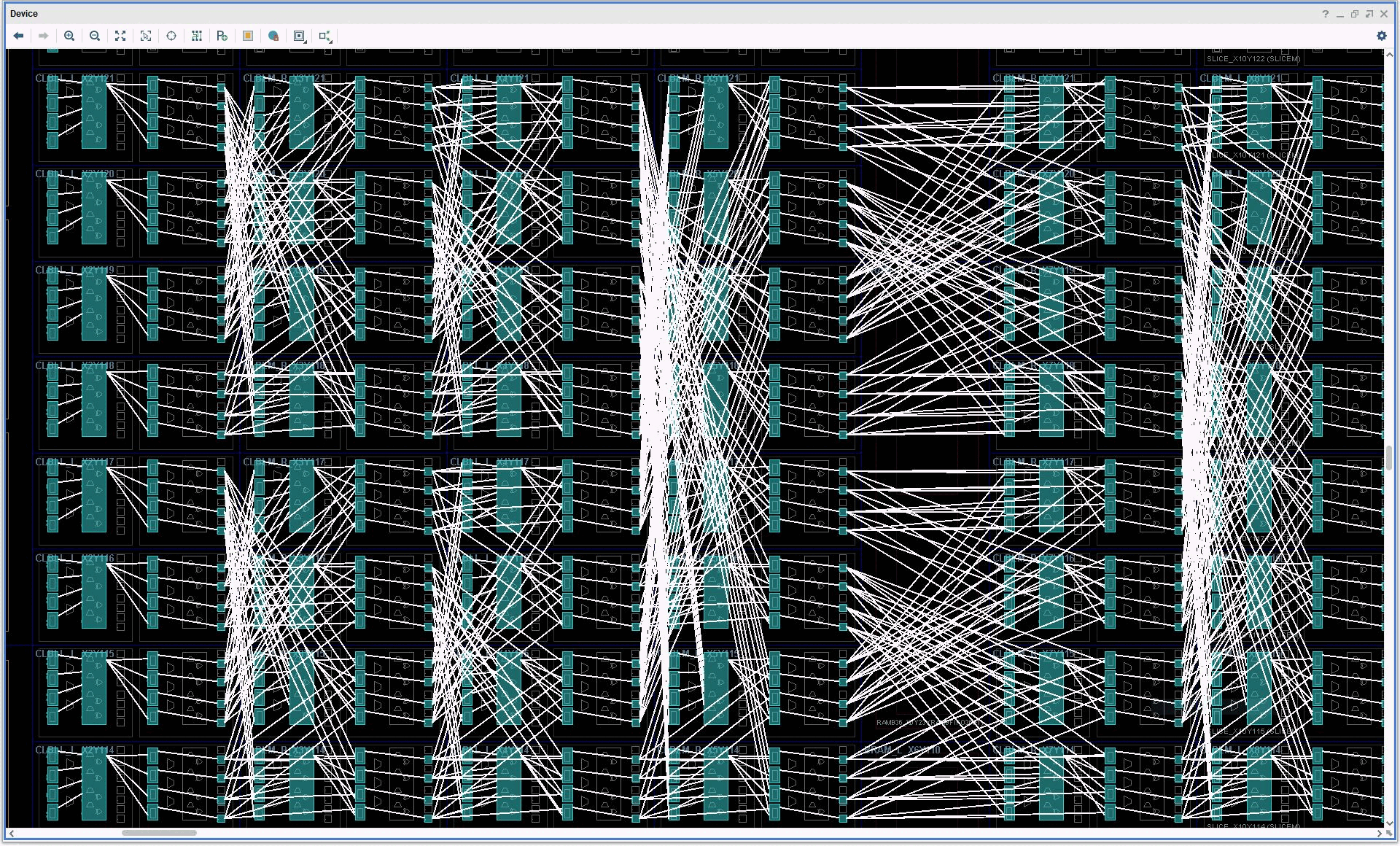

Here is what the layout of a Batcher’s bitonic sorter on a Xilinx Artix-7 XC7A200T FPGA produced from a DSL with layout combinators looks like:

Butterfly sorter

Notice how the FFT-style butterfly wiring pattern is clearly evident. The ability to express spatial layout in a textual algebraic manner is not only great for humans, but it is also fantastic for AIs (LLMs), which can use layout combinators and their laws to help optimize circuit layouts to minimize area, delay, power, etc. The basic higher order layout combinator used to implement the sorter is a butterfly network:

/-
BFLY is a butterfly pattern that can be used to implement Batcher's bitonic merger.
A degree n=0 butterfly is the base case, applying just r on 2^(1+n) inputs ie. 2 inputs to 2 outputs.
A degree n butterfly takes 2^(1+n) inputs and produces 2^(1+n) outputs.
-/
def BFLY (r : Rel (List.Vector α 2) (List.Vector α 2)) :
    (n : Nat) → Rel (List.Vector α (2 ^ (n + 1))) (List.Vector α (2 ^ (n + 1)))
  | 0 => r
  | n + 1 =>
    have h : 2 ^ (n + 2) = 2 * 2 ^ (n + 1) := by ring
    h ▸ (ILV (BFLY r n) ⨾ EVENS r)

Here ILV (interleave), EVENS and series composition ⨾ are Ruby combinators over relations (Rel), described in the Ruby papers listed below.

Running

Clone https://github.com/satnam6502/escher-fish, then:

lake build
.lake/build/bin/escher            # writes squarelimit.svg
.lake/build/bin/escher out.svg    # or to a path of your choosing

Reading the code alongside the paper

Paper Lean
§5, a picture as a function of vectors a, b, c; blank, over, beside, above, rot, flip, rot45; the utility functions quartet and nonet Escher/Picture.lean
Figure 4, the basic fish Escher/Fish.lean
§3, fish2, fish3, t, u, side, corner, squarelimit Escher/SquareLimit.lean
§6, laws such as rot(beside(p,q)) = above(rot(q),rot(p)), proved for all pictures Escher/Laws.lean
Rendering the curves Escher/Svg.lean

The paper’s side[n] and corner[n] become functions of the depth n, and beside(m, n, p, q) / above(m, n, p, q) are written beside' m n p q / above' m n p q. Otherwise the equations read as they do in the paper (repeated from above):

def squarelimit (n : Nat) :=
  nonet (corner n) (side n) (rot (rot (rot (corner n))))
        (rot (side n)) u (rot (rot (rot (side n))))
        (rot (corner n)) (rot (rot (side n))) (rot (rot (corner n)))

Coordinates are exact rationals (Rat) rather than Float, so the laws can be proved: floating-point addition is not even associative. Some laws hold only up to the order in which curves are drawn; these are stated with ≈, meaning the two pictures draw the same curves in every locating box. The laws proved are:

theorem rot_rot_rot_rot : rot (rot (rot (rot p))) = p

theorem rot_above : rot (above p q) = beside (rot p) (rot q)

theorem rot_beside : rot (beside p q) ≈ above (rot q) (rot p)

theorem flip_beside : flip (beside p q) ≈ beside (flip q) (flip p)

/-- Two `rot45`s halve a picture and move it out of its box, into the box above. -/
theorem above_blank_rot45_rot45 :
    above blank (rot45 (rot45 p)) = above (quartet blank blank (rot p) blank) blank

theorem beside'_one_one : beside' 1 1 p q = beside p q

theorem above'_one_one : above' 1 1 p q = above p q

More about Ruby and Lava

There are many great papers about Ruby and Lava, here is a small selection:

Credits and Notes

The fish’s Bézier control points are Einar Høst’s transcription of Henderson’s fish, from einarwh/escher-workshop (MIT licence).

The original version of Peter Henderson’s 1982 paper used four tiles and avoided the 45 degree rotation, as shown on the page Programming with Escher. This version is based on a complete fish tile.

Why Rat and not Float

Thanks to Jeremy Gibbons for asking some clarifying questions about the use of Rat and 45 degree rotation. Here is some explanation.

The point of an algebra of pictures is that its laws can be used to reason about pictures, which means they should be proved, not just tested. Every law in Escher/Laws.lean reduces to equations between coordinates, and those equations rely on ordinary arithmetic facts such as associativity, commutativity and distributivity. Float loses associativity and distributivity to rounding: (a + b) + c and a + (b + c) can round to different values, so a law like rot (above p q) = beside (rot p) (rot q) is simply false over Float. Rat is a genuine field, so once the combinators are unfolded, grind can close each goal. The exact rationals are converted to decimals only at the last moment, when the SVG is written.

Why ≈

A picture is a function from a locating box (a, b, c) to a list of Bézier curves. Combinators such as over and beside concatenate the lists of their arguments, so two pictures can look identical but draw their curves in a different order. For example, rot (beside p q) draws p’s curves before q’s, whereas above (rot q) (rot p) draws q’s first. Insisting on = would make such laws false for reasons that have nothing to do with geometry. So p ≈ q is defined as

instance : HasEquiv Picture := ⟨fun p q => ∀ a b c, (p a b c).Perm (q a b c)⟩

meaning that in every locating box, the two pictures draw the same curves, each the same number of times, possibly in a different order. Laws that hold exactly, such as rot_rot_rot_rot, are still stated with =.

Why the 45 degree rotation still works over the rationals

The rationals are not closed under rotation by 45 degrees: rotating (1, 0) gives (√2/2, √2/2). The trick, which comes straight from Henderson’s paper, is that a picture is never rotated by applying a rotation matrix to its points. Instead, rot45 builds a new locating box from the old one:

def rot45 (p : Picture) : Picture :=
  fun a b c => p (a + (b + c) / 2) ((b + c) / 2) ((c - b) / 2)

The new edges (b + c) / 2 and (c - b) / 2 are the old edges rotated by 45 degrees and shrunk by a factor of 1/√2. Combining the two, the √2 from the rotation cancels the √2 from the shrinking, which leaves the matrix ½ [[1, -1], [1, 1]] with rational entries. The shrinking is exactly what the Square Limit needs, because the rotated fish must fit inside the triangle formed by half of the square. Every combinator only adds, subtracts and scales vectors by rational amounts, and the fish’s control points and the initial box are rational, so every coordinate stays rational. Applying rot45 twice gives a quarter turn at half the size, shifted into the box above. That too holds exactly, as above_blank_rot45_rot45 shows.

The Lean 4 code for this post is at satnam6502/escher-fish.
